Call 1 (888) 301-2610 for buying advice and our lowest prices!
Price
$4,495.00
(Plus Shipping)
Product Name

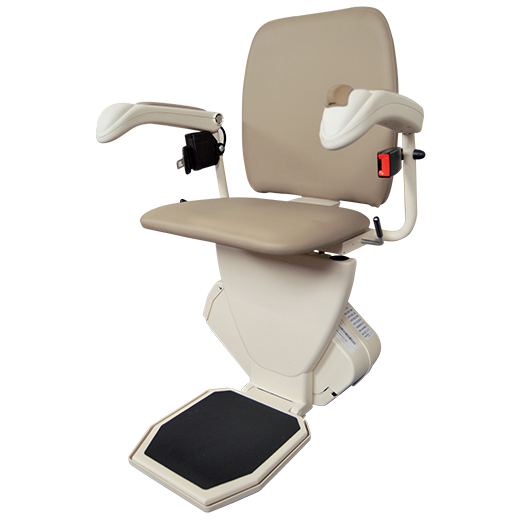

Harmar Pinnacle Premium Stair Lift
| Weight Limit | 350 lb |
| Drive Train | Polymer Worm / Worm-Rack |
| Battery Powered | Yes |
| Track Type | Aliuminum |
| Seat Width | 20" |
| Seat Depth | 15.5" |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Unit Footprint, In Use | 22.5" |
| Track Width | 4.875" |

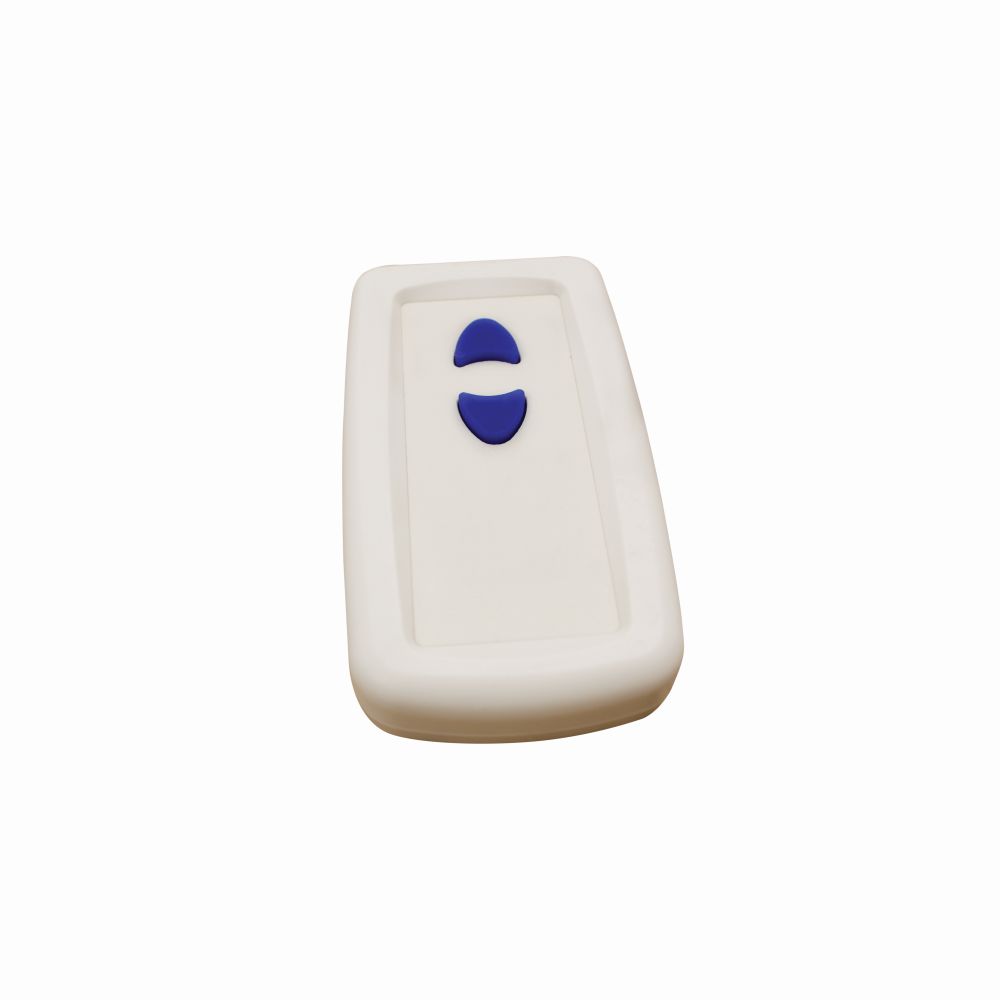

| Call Stations Included | Wireless |
| Rail Angle, Min | 32° |
| Unit Footprint, Parked | 11" |
| Rail Angle, Max | 52° |
| Digital Diagnostics Display | No |
| Track Footprint | 7" |
| Power Cord Lengths | 10' with the charger box in the middle |
| Key Lock | Yes |
The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
Additional Information
Stair Lift Overview
Lift Options Available
- Track Lengths Selection: 15' (180") is Standard *
- * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
$0.00
- 15' (180") of Track
$0.00
- Length in inches if Shorter than 180" (allow +7" for entry/exit)
$0.00
- * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
$0.00
- Additional Track (Maximum 70' Including the 15' Standard Track)
- Up to 3' of Additional Track
$250.00
- Up to 5' of Additional Track
$393.00
- Up to 7'9" (93") of Additional Track
$536.00
- Up to 3' of Additional Track
$250.00
- Additional Brackets (comes with standard)
- Standard Brackets
$29.00
- Tall Brackets
$29.00
- Standard Brackets
$29.00
- Options
- Track Cut to Custom Length (Required for any track cut)
$143.00
- Key Lock on Chasis
$143.00
- Seatbelt Extension
$100.00
- Manual Lowering Tool
$50.00
- Folding Rail - Left Hand
$1,695.00
- Folding Rail - Right Hand
$1,695.00
- Track Cut to Custom Length (Required for any track cut)
$143.00
- Power Options
- No Power Options
$0.00
- Power Swivel (temporarily out of stock)
$860.00
- Power Footrest
$795.00
- Power Swivel and Power Footrest (temporarily out of stock)
$1,495.00
- No Power Options
$0.00
- Call Stations
- Top & Bottom Call-Send Stations
$0.00
- Top & Bottom Call-Send Stations
$0.00
- Orientation (looking UP the staircase)
- The stair lift will be on the left
$0.00
- The stair lift will be on the right
$0.00
- The stair lift will be on the left
$0.00
- Installation
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
$0.00
- Self Installation
$0.00
- Nationwide Installation
$599.00
- Nationwide Installation and Measurement Service
$749.00
- Double Stair Lift Installation Service - Per Stair Lift
$437.50
- Stair Lift Removal and Disposal
$499.00
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
$0.00
- Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs
$300.00
- Installation In Remote or Limited Access Location
$285.00
- Installation On Concrete, Steel, or Tile Stairs
$300.00
- Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
$0.00
- 1. Overall length
$0.00
- 2. Top stair to bottom stair
$0.00
- 3. Staircase width
$0.00
- 4. Bottom clearance
$0.00
- 5. Rise of one step
$0.00
- 6. Tread of one step
$0.00
- 7. Diagonal
$0.00
- 8. Door at the top
$0.00
- Need help measuring? Please see our "How to Measure" page.
$0.00
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
$0.00
Why buy an AmeriGlide Stairlift? We can give you 10 reasons.
AmeriGlide is the quality manufacturer of stair lifts and other mobility products. There are many many reasons to buy an AmeriGlide stair lift. Check out what some of our customers have to say in the Testimonials section of our site. The following Ten Best Reasons to Buy an AmeriGlide Stair lift comes directly from the President of AmeriGlide.
- Quality: AmeriGlide refuses to have the quality of our stair lifts surpassed by any manufacturer. We back our quality up with a 10-Year Drive Train Warranty and a 5-Year Parts Warranty. Please see the warranty section of our site for details.
- Reliability: Each part of the AmeriGlide stairway lift has been designed to make sure you can depend on your lift when you need it most. Little things have been added such as a power indicator light on the track assuring you that unit is ready to use. The aircraft cable in the drive system is rated 4,200 lbs. breaking strength. A spare fuse is under the 115-volt plug so you can replace it yourself if necessary. The motor and gear have been tested in excess of 30,000 cycles equal to 16 years of use and neither showed excessive wear. Last but not least, AmeriGlide stair lifts do not have circuit boards which are prone to failure for a host of reasons from power surge, lightning, to poor construction.
- Minimal Maintenance: As strange as this may sound for a mechanical device, there is simply very little maintenance required for the AmeriGlide stairlift. Lubrication of the track is needed every 4-6 months. Nothing more! The gearbox on the AmeriGlide stairlift is completely sealed, preventing the possibility of oil leaking onto your carpet unlike most lifts that have gearboxes with vent plugs. Also, virtually all other lifts use rack and pinion gears to drive the lift. These must be lubricated with dust-collecting grease to prevent damage from occurring. AmeriGlide?s cable drive system does not require lubrication, allowing you to leave dust-collecting grease in the garage.
- Peace of Mind: The AmeriGlide stairway lift was designed to make sure nothing was missed. Footrest safety sensors stop the lift in either direction should it strike anything on the stairs. The seat is equipped with a seat belt and a safety switch that prevents the unit from running unless the seat is in its proper position. Limit switches shut the unit off in the same place at the top and bottom of the stairs automatically. This is our way of offering you and your family member's peace of mind regarding your safety.
- Comfort/Safety: The AmeriGlide stairlift has a wide, thick, padded seat that folds up when not in use. The large rocker switch on the arm of your choice and a 180-degree swivel seat make using the lift simple. The fold-up footrest adjusts give your feet support and the backrest makes sure you are as comfortable as when you are sitting in your favorite chair. Every facet of the lift was designed to enable you to relax and enjoy using your AmeriGlide Stairlift.
- Flexibility: The AmeriGlide stairway lift can be placed on either side of a staircase, and the unit control can be placed in either arm. By adding or cutting the track, you can modify the length of the unit should you ever need to relocate. Standard call controls are mounted on the floor at each end of the staircase and can be placed on the wall and operated by hand. Either location allows you to call the lift to you regardless of where the lift is on the track. This flexibility enhances the resale value of the lift, and yes, the warranty is transferable should you decide to resell your lift!
- Easy Installation: AmeriGlide stairlifts were designed and engineered from start to finish with homeowner installation as the end objective. The result is a stairlift that is unsurpassed in ease of installation. The heaviest part of the lift is 100 pounds allowing for a true one man installation. We have eliminated any stripping or connecting of individual wires and created a system that simplifies installation of the base unit onto the track.
- Technical Support/Service: Our technical department is open Monday through Friday, 8:00am to 5:30pm. We will not be surpassed by any manufacturer in service or support.
- Warranty: Our warranty is unsurpassed in the industry. We offer the only 5 year warranty on 100% of the component parts of our lift. No exceptions, no exclusions, no games!
- Value: The AmeriGlide stairlift is the best value in the industry today. Of course, we have the best price, but value is more than just price. We also provide all the elements that create value for our customers, including quality, service, support, reliability, and warranty. We want to thank you for considering AmeriGlide as your stair lift solution. You can pay more for a stair lift, but you can't buy more value than AmeriGlide Stairlifts. Let us help you regain your freedom with AmeriGlide Stairlifts.
